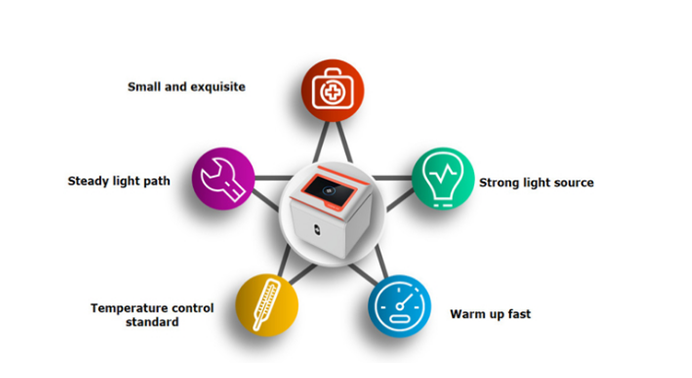

Small and exquisite:

Easy to carry, vehicle-mounted, small in size, light in weight, and easy to carry;

Steady light path:

Fixed optical path, no moving parts, means no optical alignment or calibration after moving;

Strong light source:

Each channel has a separate high-intensity LED excitation source, using separate emission filters and detectors;

Warm up fast:

Use magnetic induction technology to achieve heating and forced airflow cooling, faster heating and cooling time;

Temperature control standard:

Rotating aluminum rotors have unmatched temperature uniformity in both dynamic and static operation;

Temperature Accuracy

±0.2℃

Temperature uniformity

+0.25℃

Temperature Input Range

At room temperatureto 99℃

Rate of temperature change

heating rate >6℃/s;cooling rate >4℃/s

Excitation sources

High power LED/channel

Detectors

Photodiode

Light life

≥ 100,000 hours

Fluorescence channel

2/4 channels

Samples per instrument

24 Wells

Reaction volume range

10-100ul,0.2ml,Use a universal PCR tube

Hardware parameters

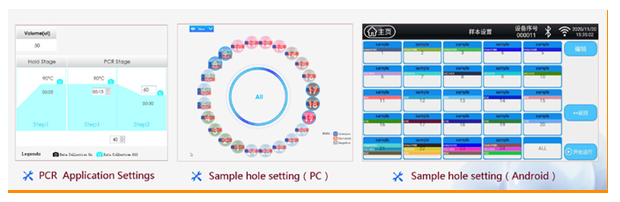

With touch screen,the experimental process can be viewed in real With touch screen,the experimental process can be viewed in real time;The device supports connecting to the cloud service platfom,a time;The device supports connecting to the cloud service platfom,and can realize functions such as automatic data transmission and nd can realize functions such as automatic data
transmission and remote consulting

Communication module

USB,Wifi
?The device can be connected with a code scanning gun and input sample information

Run time enviroMicgene 162/164 Real-time fluorescence quantitative PCR analyzer:nment

Temperature:18-30℃

Releative humidity:20-80%

Software options: test version,scientific research version,teaching version

Physical parameters

Small size,easy to carry;External

240×230×260mm(L×W×H)

Weight

5kg
